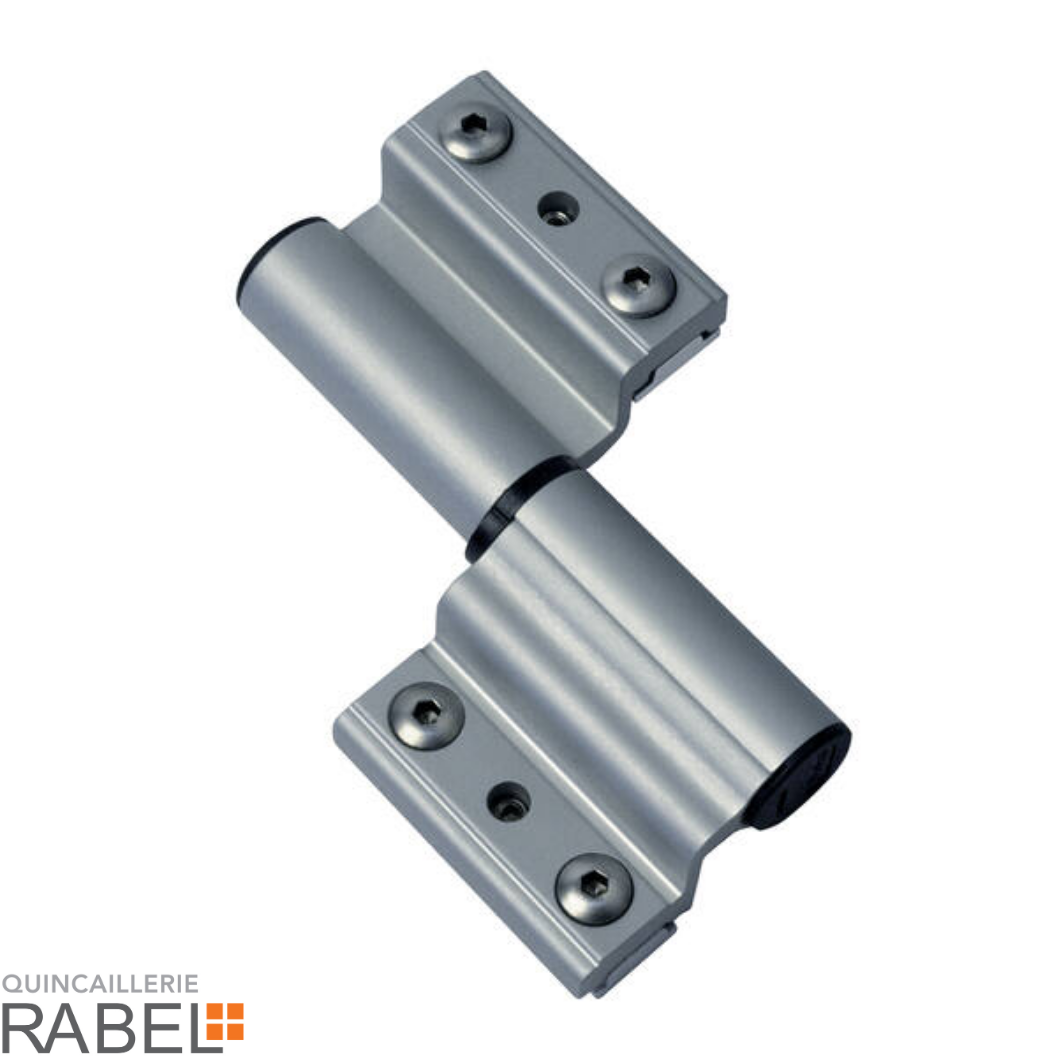

Two-leaf hinge suitable for doors manufactured from window profiles. It is fitted directly on profile grooves with no need of further machining. Hinge bodies and counterplates in extruded aluminium, pressure adjusting bush in Delrin, pivot and screws in stainless steel, caps in nylon. It is supplied with pre-assembled counterplates. Possibility of horizontal (+/- 2mm) and vertical (-0, +4mm) adjustment with the door closed, and in pressure through rotation of a bush (+/- 0,5mm).
MONZA hinge, Blue-white | 5672-58 |
MONZA hinge , White | 5672-32 |
MONZA hinge, Black | 5672-37 |
MONZA hinge , Semi-gloss silver | 5672-G6 |
MONZA hinge, Inox (5 per box) | 5672-03 |
MONZA hinge, Semi-gloss inox (5 per box) | 5672-MV |
MONZA hinge, Mill finish | 5672-41 |
